Variant Normalization¶

How gbcms prepares variants before counting — validation, left-alignment, and homopolymer decomposition.

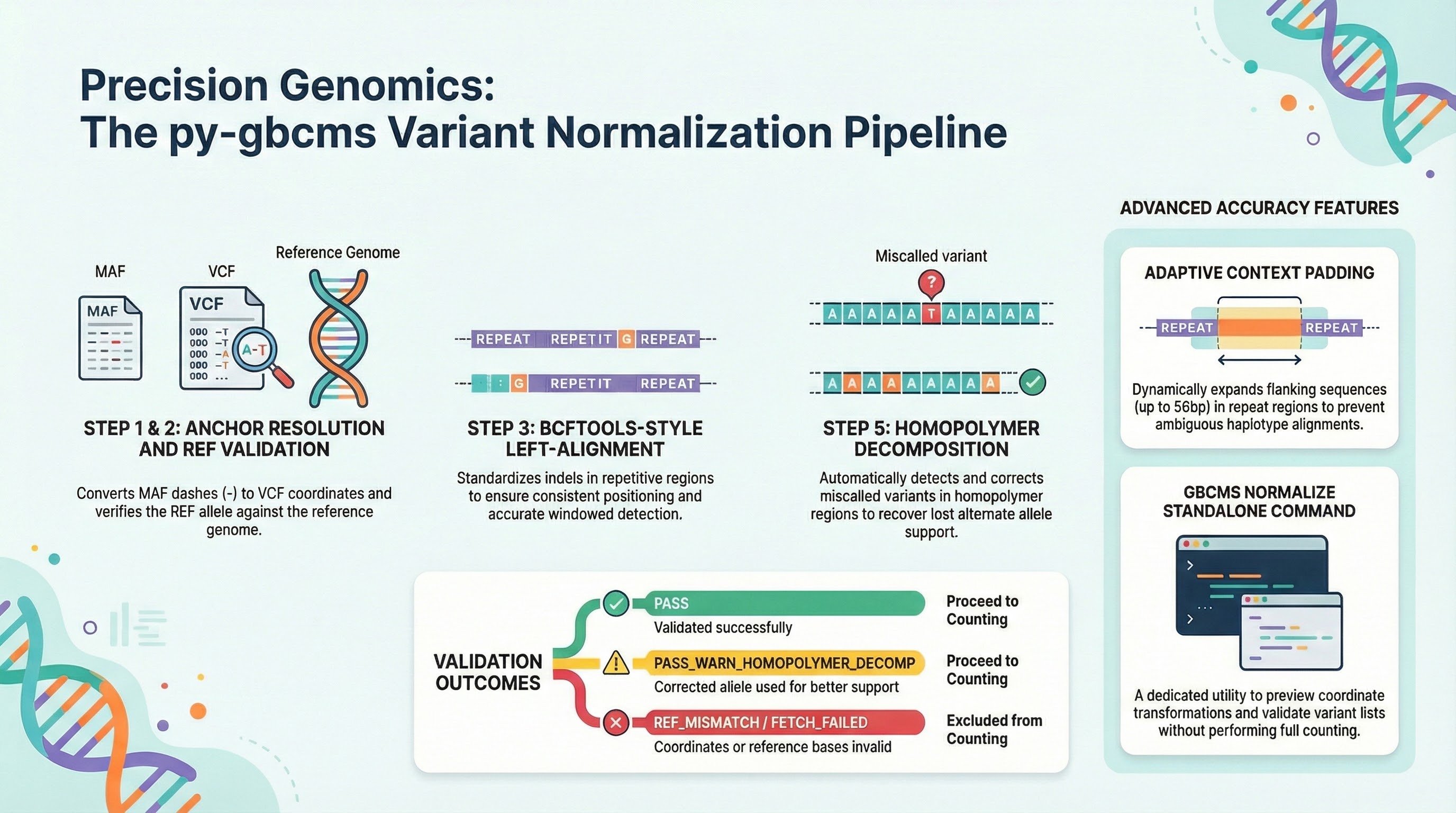

Visual Overview

Overview¶

Before counting any reads, every variant passes through the preparation pipeline in prepare_variants(). This ensures consistent, biologically correct coordinates regardless of how the input was generated.

flowchart LR
    Input([📄 Input Variant]) --> S1[MAF Anchor Resolution]
    S1 --> S2[REF Validation]
    S2 --> S3[Left-Alignment]
    S3 --> S4[ref_context Fetch]
    S4 --> S5[Homopolymer Detection]
    S5 --> Output([✅ PreparedVariant])

    classDef step fill:#3498db,color:#fff,stroke:#2471a3,stroke-width:2px;
    class S1,S2,S3,S4,S5 step;

Each input variant produces exactly one PreparedVariant, even if validation fails — this guarantees output row count always matches input.

Step 1: MAF Anchor Resolution¶

MAF files represent indels using - dashes. gbcms converts them to VCF-style anchor-based coordinates, which requires fetching the anchor base from the reference FASTA.

Step 2: REF Validation¶

The REF allele is compared against the reference genome at the stated position. An exact match passes immediately. If the exact match fails, a similarity score is computed — variants with ≥90% base match are corrected to the FASTA REF and proceed to counting.

flowchart TD
    Fetch["Fetch ref bases at pos"] --> Exact{"Exact match?"}
    Exact -- "Yes" --> Pass([✅ PASS]):::pass
    Exact -- "No" --> Sim["Compute similarity\n(matching bases / max length)"]
    Sim --> Thresh{"≥ 90%?"}
    Thresh -- "Yes" --> Corrected(["⚠️ PASS_WARN_REF_CORRECTED\n(use FASTA REF)"]):::warn
    Thresh -- "No" --> Fail([❌ REF_MISMATCH]):::fail

    classDef pass fill:#27ae60,color:#fff;
    classDef warn fill:#f39c12,color:#fff;
    classDef fail fill:#e74c3c,color:#fff;

When a variant receives PASS_WARN_REF_CORRECTED, the MAF's REF allele is replaced with the FASTA sequence for all downstream steps (left-alignment, haplotype construction). The original MAF REF is preserved in original_ref for auditing.

Step 3: Left-Alignment¶

For indels and complex variants, gbcms applies bcftools-style left-alignment to ensure consistent positioning in repetitive regions.

flowchart TD
    Input["Indel: chr1:105 ACG→A
(in a CGCG repeat)"]
    Fetch["Fetch ±100bp flanking sequence"]
    Align["Shift left through repeat"]
    Result["chr1:101 ACG→A
(leftmost position)"]

    Input --> Fetch --> Align --> Result

After alignment, the variant type is re-detected based on the new allele lengths:

Step 4: ref_context Fetch (Adaptive)¶

For indels and complex variants, a flanking reference sequence is fetched around the (possibly normalized) position. This context serves two purposes:

1. Windowed indel detection — Safeguard 3 uses ref_context to verify that shifted indels delete/insert the expected reference bases
2. Phase 3 Smith-Waterman alignment — the context is used to build REF and ALT haplotypes for dual-haplotype alignment

Adaptive Context Padding¶

By default, gbcms dynamically adjusts the context padding based on nearby tandem repeats. This prevents ambiguous SW alignments in repetitive regions where a fixed padding might consist entirely of the repeat motif.

Multi-Anchor Footprint Sweep¶

Historically, scanning only the variant's strict anchor base caused miscalculations for left-aligned INDELs, as the trailing INDEL mutations generated by BWA mapping often fell outside the default 5bp padding window.

The engine now performs a Multi-Anchor Footprint Sweep. It scans across the entire variant footprint (pos through pos + ref_len) looking for tandem repeats, and extracts the maximum necessary padding to clear the repeat entirely.

flowchart LR
    Scan["Scan Footprint\n(pos to pos+ref_len)"] --> Detect{"Repeat\nfound?"}
    Detect -- "Yes (span=S)" --> Formula["padding = max(default, S/2 + 3)\ncapped at 50bp"]
    Detect -- "No" --> Default["padding = default (5bp)"]
    Formula --> Fetch["Fetch ref_context"]
    Default --> Fetch

Example: Poly-A Insertion¶

Variant: chr7:100 A→AAAAAAAAAAAAA (12bp poly-A insertion)
Footprint: chr7:100-101
Flanking: ...AAAAAAAAAA[anchor]AAAAAAAAAA...

Sweep Detected: homopolymer max span=20bp → padding = max(5, 20/2+3) = 13bp

Fixed padding=5:     AAAAA + REF/ALT + AAAAA  (all A's — ambiguous, BWA alignments drop)
Adaptive padding=13: GCTTAAAAA... + REF/ALT + ...AAAAATTGAC  (anchored)

Supported Repeat Types¶

Step 5: Homopolymer Decomposition Detection¶

Some variant callers merge nearby events (e.g., a 1bp deletion + SNV in a homopolymer) into a single complex variant with an inflated deletion size. For example, CCCCCC→T when the reads actually show CCCCCC→CCCCT (a D(1) + C→T).

Detection Criteria¶

All four conditions must be met:

flowchart TD
    C1{"REF is homopolymer?
(all same base, ≥3bp)"} -- Yes --> C2{"Net deletion?
(ref_len > alt_len)"}
    C2 -- Yes --> C3{"ALT last base ==
next ref base after REF span?"}
    C3 -- Yes --> C4{"ALT last base ≠
homopolymer base?"}
    C4 -- Yes --> Detected([🔍 Decomposition detected]):::detect

    C1 -- No --> Skip([Skip]):::skip
    C2 -- No --> Skip
    C3 -- No --> Skip
    C4 -- No --> Skip

    classDef detect fill:#f39c12,color:#fff,stroke:#d68910,stroke-width:2px;
    classDef skip fill:#95a5a6,color:#fff,stroke:#7f8c8d,stroke-width:2px;

Corrected Allele Construction¶

When detected, a corrected ALT allele is built by keeping most of the homopolymer intact and appending the SNV base:

Example:  REF = CCCCCC, ALT = T, next_ref_base = T

Step 1: homopolymer base = C
Step 2: Confirmed: alt_last (T) == next_ref_base (T), T ≠ C
Step 3: corrected_alt = C × (ref_len - 1) + alt_last = CCCCC + T = CCCCT

Dual-Counting Flow¶

The corrected variant is stored in PreparedVariant.decomposed_variant. During counting, both the original and corrected alleles are counted independently. The result with the higher alt_count wins:

flowchart TD
    CountOrig["count_bam(original: CCCCCC→T)"]
    CountDecomp["count_bam(corrected: CCCCCC→CCCCT)"]
    Compare{"corrected AD > original AD?"}
    UseDecomp["Return corrected counts"]
    UseOrig["Return original counts"]
    FlagWarn["validation_status =
PASS_WARN_HOMOPOLYMER_DECOMP"]
    FlagPass["validation_status = PASS"]

    CountOrig --> Compare
    CountDecomp --> Compare
    Compare -- "Yes" --> UseDecomp --> FlagWarn
    Compare -- "No" --> UseOrig --> FlagPass

Validation Status Reference¶

Every PreparedVariant carries a validation_status string:

Limitations¶

1. Left-alignment only — gbcms left-aligns but does not right-align. If your input is right-aligned, the windowed scan (±5bp) may still catch it, but left-alignment is recommended.
2. Dynamic normalization window — Starting at 100bp, the window automatically doubles (up to 2500bp) when a variant shifts to the window edge. In practice, this covers even variants in centromeric/telomeric repeats. Variants shifted beyond 2500bp won't be corrected.
3. Homopolymer detection is conservative — only triggers for homopolymer REF ≥3bp with a clear D(n)+SNV pattern. Other miscollapsed events are not detected.
